Aviator Cub UK

The Aviator Cub UK is designed to give you the ultimate flexibility and performance in a single-channel combo amplifier. With three iconic tones—'AC, 'AC Top Boost, and 'JMP'—all easily accessible at the turn of a knob, this amp allows you to quickly dial in the perfect sound for any style or mood. Whether you're chasing the classic warmth of an AC, the bright chime of a Top Boosted AC, or the punchy power of a JMP, the Aviator Cub UK delivers exceptional tone without compromise.

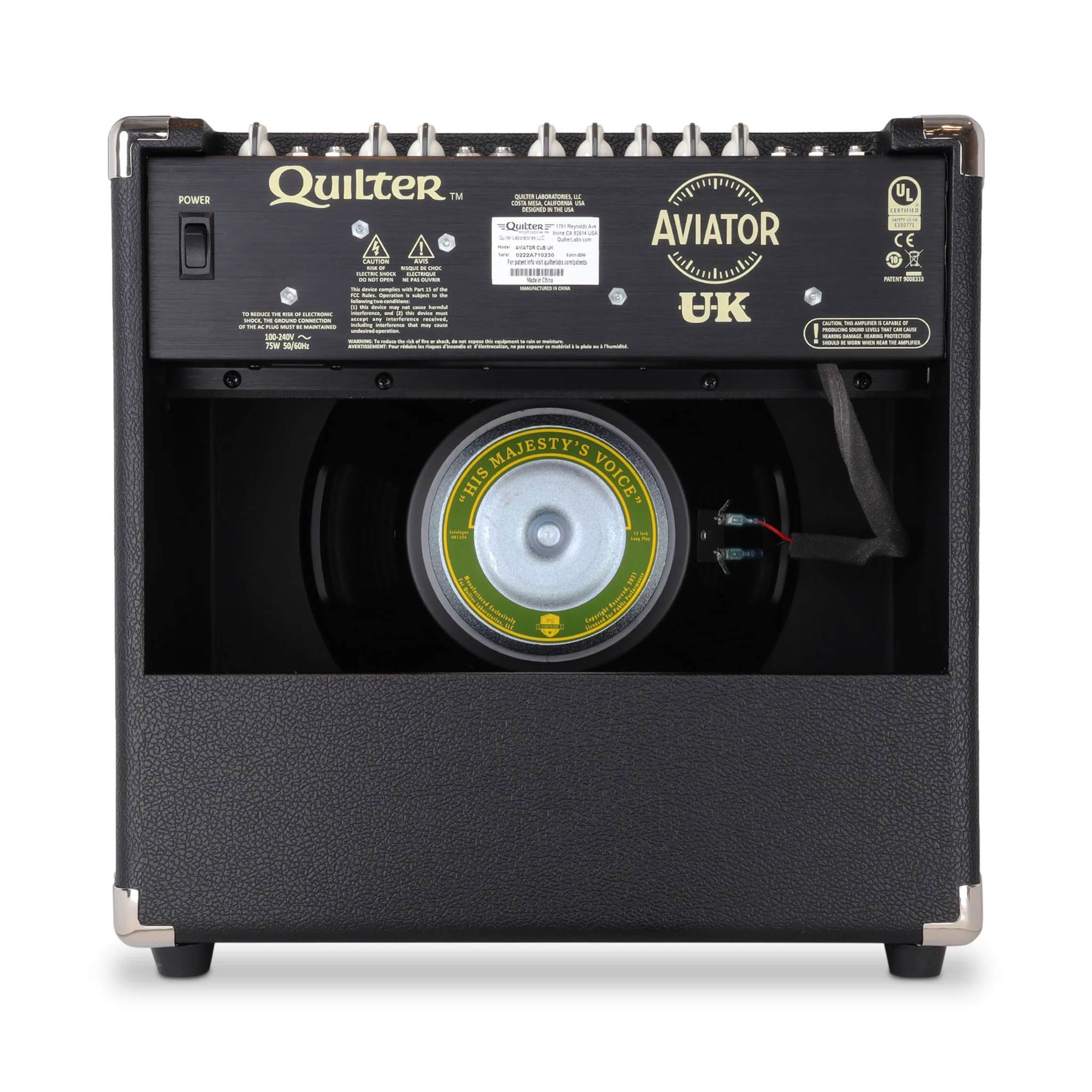

We’ve teamed up with Eminence, a world-renowned speaker manufacturer, to create a custom 12-inch speaker that captures the essence of vintage greenbacks, yet handles up to 50 watts of power. This means you can enjoy classic, vintage-inspired sound with the reliability and headroom needed for modern playing.

Lightweight, powerful, and economical, the Aviator Cub UK is the perfect amp for players who want top-tier tone and portability, without breaking the bank. Whether you're on stage, in the studio, or practicing at home, this amp ensures you're always ready to play your best.



• Features
  • Up to 50 watts of tube-like power.
  • 3 classic voicings.
  • 3 band active EQ (Bass/Mid/Treble)
  • Reverb
  • Separate SPKR VOL and SIG OUT volumes. When playing on stage with PA reinforcement, work with the sound operator to establish a comfortable SIG OUT level, and then use the SPKR VOL to set your personal speaker level without changing the SIG OUT level.
  • Effects Loop

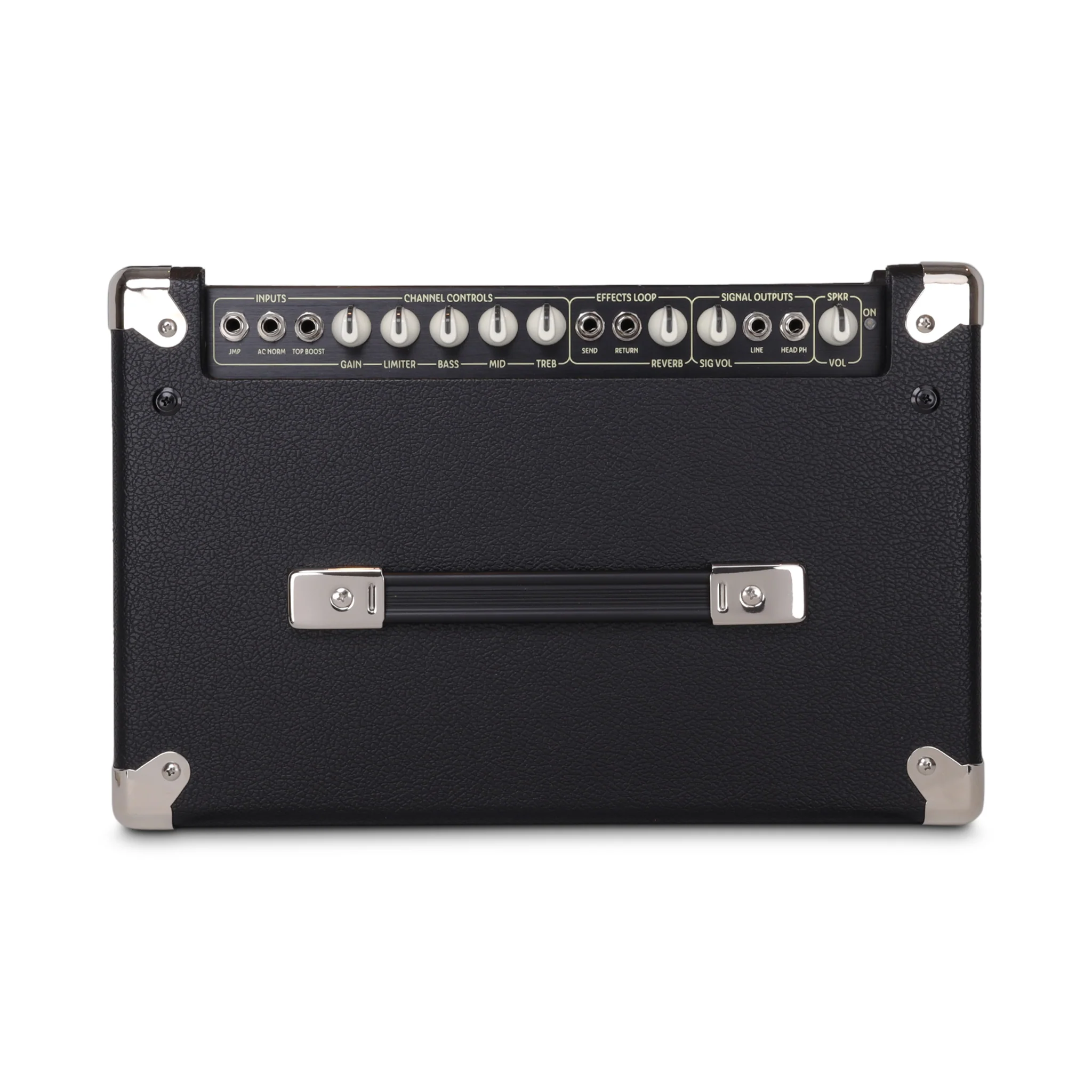

• Controls
  • Primary Controls
  • 3 VOICE INPUTS allowing you to choose between 3 classic voices.
  • GAIN adjusts the distortion from clean to high overdrive.
  • LIMITER progressively brings down a "soft ceiling" that can keep overdrive to a "rolling boil" on soft settings, or increase sustain on higher settings.
  • 3-BAND ACTIVE EQ Boosts and cuts Bass, Mids, and Treble frequencies.
  • Effects Controls
  • EFFECTS LOOP send and return jacks.
  • REVERB
  • Volume Controls
  • SIG OUT controls the volumes of headphones and Line Out.
  • LINE OUT JACK.
  • HEADPHONE JACK.
  • SPKR VOL adjusts speaker power volume level.
• Specifications
  Electronic Performance

  Input	¼” Mono, 2 meg impedance, 1.5-5Vpk (depending on EQ)
  FX Loop	¼” mono, 1V full scale, 1K out, 47K inp (with FX Send lifted)
  SIG OUT	¼” TRS, balanced line, 40 ohms each leg, 2V full scale
  HEADPHONE (SIG OUT)	¼” TRS, 40 ohms each channel, 0-3V peak (depending on SIG VOL)

  Power

  Speaker Out	0-50W (depending on SPKR VOL setting)
  AC Power	100-240 VAC, 50-60Hz, 100W maximum
  Speaker	Custom Quilter Special Design 12", by Eminence

  Combo Dimensions


  HxWxD	Height: 16.5” (41.9 cm) Width: 16.5” (41.9cm) Depth: 10.8” (27.3cm)
  Weight	21.55 lbs (9.8kg)

  Shipping Dimensions


  HxWxD	Height: 19.5” (49.5cm) Width: 20.0” (50.8cm) Depth: 14” (35.6cm)
  Weight	26 lbs (11.8kg)
  Protective Cover	Ballistic Nylon with pouch in rear




• Resources
  • The Wiki page contains detailed info for setup and technical specs.
